Use an OLED (Adafruit SSD1306) with a Raspberry PI, in Java Raspberry PI
Organic Light Emitting Diode graphic display

The board we are talking about here is the Monochrome 128x32 OLED graphic display.
It uses SPI.

Wiring

SSD1306Raspberry PI
Vin3V3pin #1
GNDGNDpin #6
CSCE0pin #24
RSTGPIO 24pin #18
D/CGPIO 23pin #16
CLKSCLKpin #23
DATAMOSIpin #19

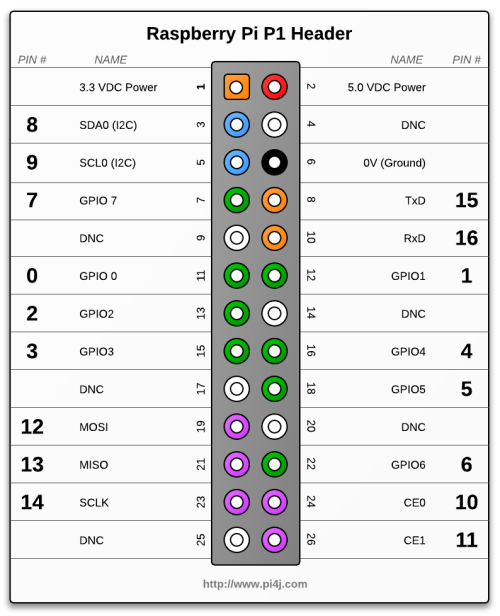

 Raspberry PI P1 Connector map Click to enlarge

Note: There are on the Raspberry PI header pins labeled MISO, MOSI, SCLK, CE0. These are the ones we use in this example. But this is absolutely not mandatory to use them. You can very well use any GPIO pins you like, as long as they are used in the right direction (input or output).
You just need to modify the code (spi.oled.AdafruitSSD1306) accordingly.

Running

There are several parts in the code: Those interested in understanding how a screen works (any kind of screen, actually) will take a look at the code.
The class to run as an example is spi.oled.OLEDSSD1306Sample. Run it from a script like this:

 #!/bin/bash
 PI4J_HOME=/home/pi/pi4j/pi4j-distribution/target/distro-contents
 CP=./classes
 CP=$CP:$PI4J_HOME/lib/pi4j-core.jar
 sudo java -cp $CP spi.oled.OLEDSSD1306Sample
The output would look like this:

Click to enlarge
"I speak Java!"

Sample flow

Here is a summary of the path to take.
The code in spi.oled.OLEDSSD1306Sample also illustrates the available features - more exhaustively. It will show how to display a string at a given location, plot pixels, draw lines, rectangles, shapes, display images, make an horizontal marquee, a vertical one, etc.
In the following example, we just show how to display the string "ScreenBuffer", at a given location on the screen.

    AdafruitSSD1306 oled = new AdafruitSSD1306();     01

    oled.begin();                                     02
    oled.clear();

    ScreenBuffer sb = new ScreenBuffer(128, 32);      03
    sb.clear();

    sb.text("ScreenBuffer", 2, 8);                    04

    sb.dumpScreen();                                  05

    oled.setBuffer(sb.getScreenBuffer());             06
    oled.display();

    // ...

    oled.shutdown();                                  07
01 Initialize the AdafruitSSD1306 object.
This is the one you will refer to to display anything, or erase the screen.
02 begin will make it ready to be used.
clear resets it.
03 The ScreenBuffer represents the screen - its pixels actually - to be displayed.
Here 128 and 32 represent the width and height of the screen, in pixels.
The clear method turns off all its pixels.
04 This is where you "write" something on the screen.
There are several such methods. text, plot, line, image, etc. See the code of the ScreenBuffer class for details.
In this case, the string "ScreenBuffer" will be displayed on the screen, the left of the string will be 2 pixels from the left of the screen, the bottom of the string will be 8 pixels from the top of the screen.
05 This one is to be used for debugging.
It spits out on the standard output the content of screen as it is when you invoke this method.
06 This needs some comments.
The getScreenBuffer method on the ScreenBuffer object does two things:
  • It turns the led matrix (2 dimensions) into a one-dimension array (expected by AdafruitSSD1306)
  • The converted array is returned
The setBuffer is invoked on the AdafruitSSD1306, to push the buffer on the device.
Then the display method is invoked, this is the one actually displaying the recently pushed buffer on the screen itself. It tuns the screen's leds on and off, accordingly to the content of the screen buffer.
07 This is the counterpart of the begin method.
Free the resources when you are done, before ending the program.

The bmp images are converted with this Bitmap Converter (example available in the code).
The simulator helps you to take a look at the screen, before running your code on the real device.
To use the simulator, run the class at spi.oled.utils.ImageBuilder.
To implement your own features, do it in the method named doYourJob().

Click to enlarge
"I speak Java!"

Oliv did it
